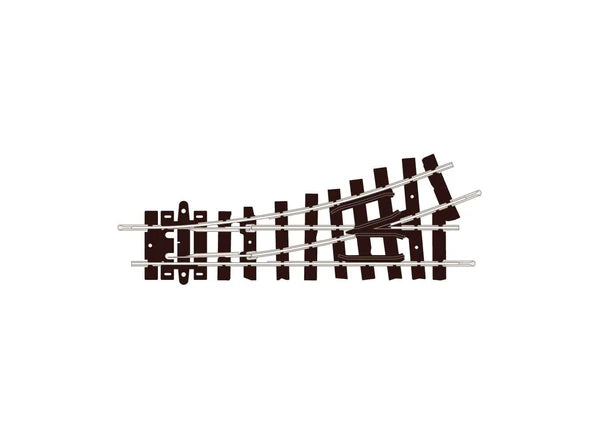

PECO ST-406 OO9/HOn30/HOe Short-Radius Left-Hand Insulfrog Turnout

Length:  87 mm

Radius:  228 mm

Gauge:  9 mm

Rail height:  code 80 (0.08"" ≈ 2.0 mm)

Frog angle:  22.5°

Frog type:  Insulfrog

Turn direction:  left-hand

Corresponding ladder track centre-to-centre separation:  34.7 mm

PECO ST-406 product page

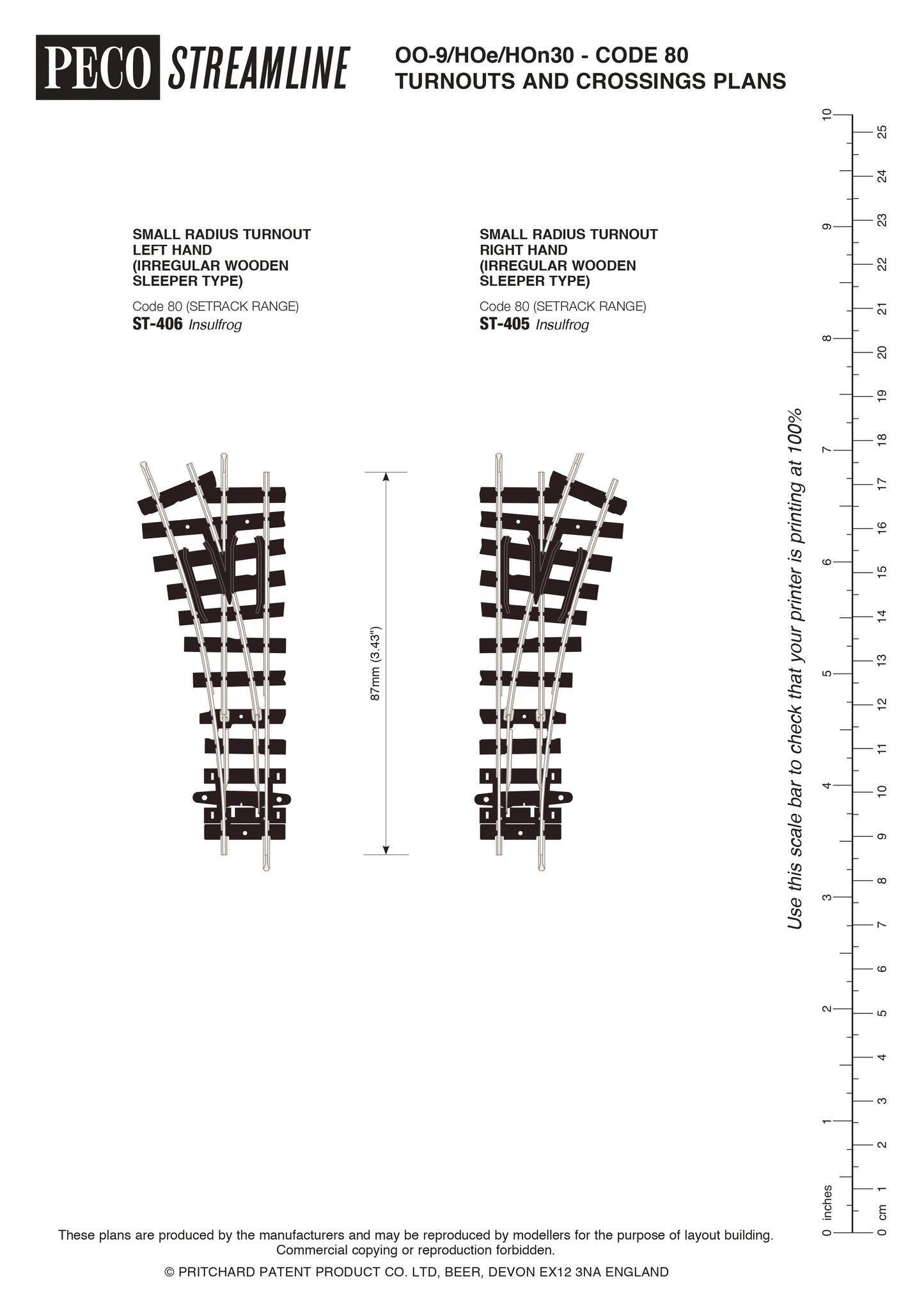

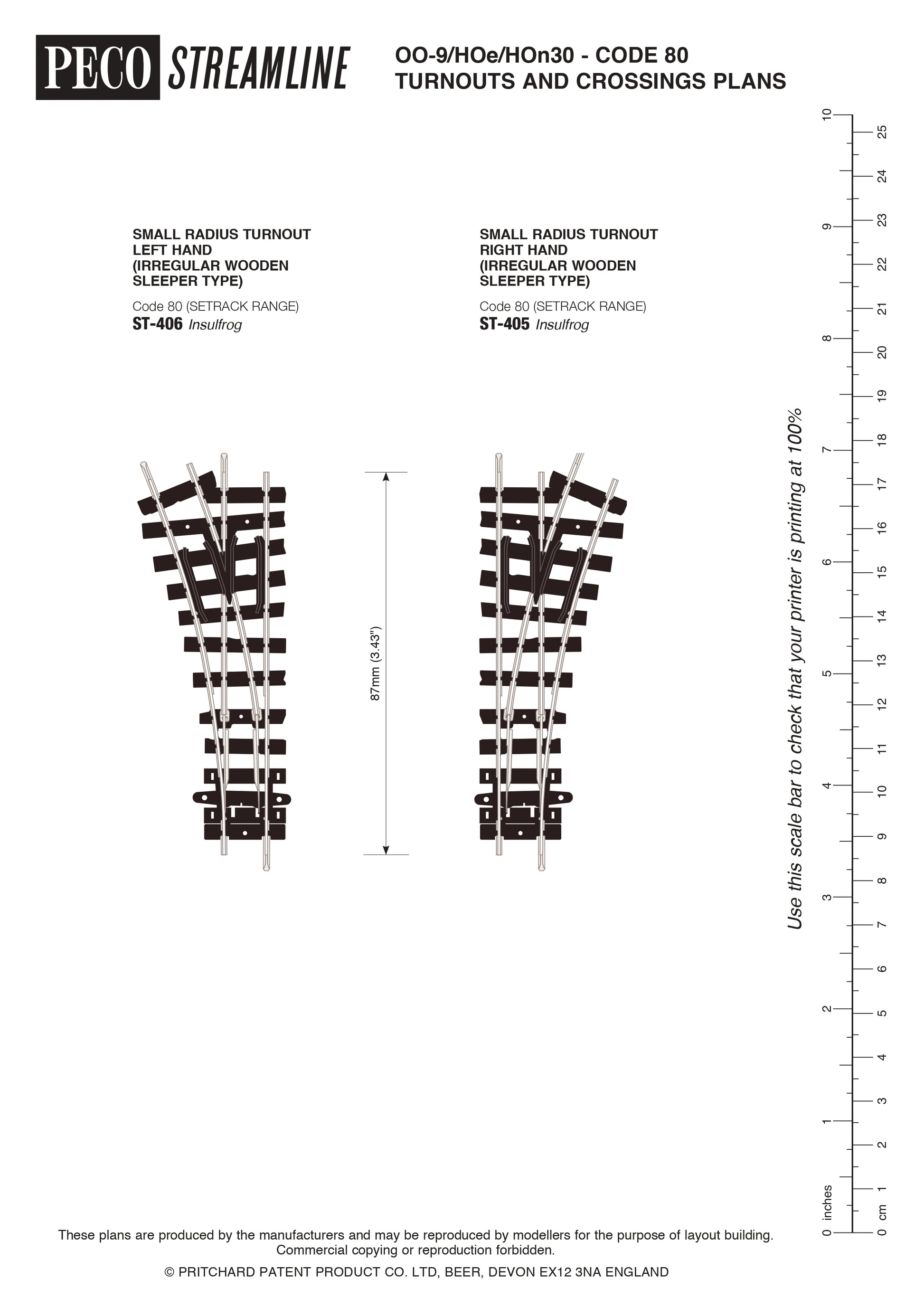

PECO ST-406 plan sheet
