EX-CSB1 Express Command Station / Booster

This product qualifies for free shipping in Canada.

Not only for narrow gauge layouts!  The EX‑CommandStation / Booster One Express addresses the needs of users who want a ready-to-run DCC command station, which will have them running trains within five minutes of plugging it into power and track and connecting their WiFi smart phone.

The DCC-EX Command Station outperforms other DCC command stations, which typically have single 3-3.5A or single 5A output capabilities, at a fraction of the cost, while providing more advanced features.

Features:

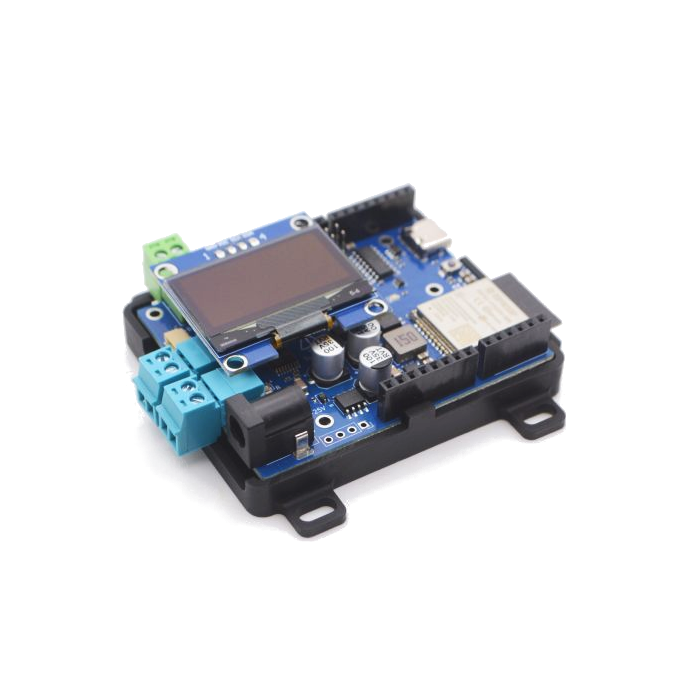

The EX‑CSB1 comes ready to use out of the box and has the following features:

  • Dual DCC/PWM DC outputs with up to 5A total capacity.
  • WiFi built-in - fast 802.11n capable, with Access Point and Station modes support up to 10 WiFi throttles.
  • Single power supply for track and onboard electronics - 12-25V DC with polarity protection.
  • USB-C connector - for software upload, diagnostic monitoring, DCC-EX WebThrottle and JMRI connectivity.
  • Railsync DCC input - enables Booster Mode, which with an optional EXRAIL script which can be automatically engaged on receipt of a signal.
  • OLED screen - for diagnostics, status and information display.

    Item contents:

    • CSB1 device
    • black plastic carrier plate (sled)
    • 1.3" OLED display screen
    • pluggable screw terminal connectors
    • NEW:  2 mm screwdriver

    Required: 12V-15V 3A or higher power supply with 5.5 x 2.5 mm plug. This product does not include a power supply. Suggested power supplies are:

    Packaging:

    • anti-static bag
    • sturdy physical protection

    Full product, software, and system information is available here.

    The EX-CSB1 Quick Setup Guide is available here.

    Please note that unlike the picture, the pluggable screw terminal connectors are all green.

    This product qualifies for free standard shipping or $10 express shipping within Canada. (See Packaging and shipping.)

    Made in China.
