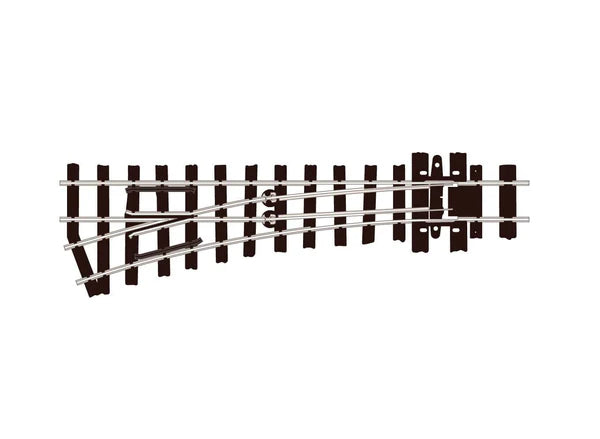

PECO SL-E492 OO9 / HOn30 / HOe small radius left-hand Electrofrog turnout

This item is part of the NGMRSC PECO OO9 / HOn30 / HOe (9 mm gauge) track, turnouts, and accessories collection.

Gauge:  9 mm

Rail height:  Code 80 (0.8" = 2 mm)

Track system:  OO9 / HOn30 / HOe

Frog type:  Electrofrog.  See 'Frogs and turnout wiring'.

Length:  125 mm

Frog angle:  19.5 degrees

Radius:  304 mm

Corresponding ladder track centre-to-centre separation:  34.9 mm.

Sleeper / tie style:  irregular

PECO SL-E491 product page

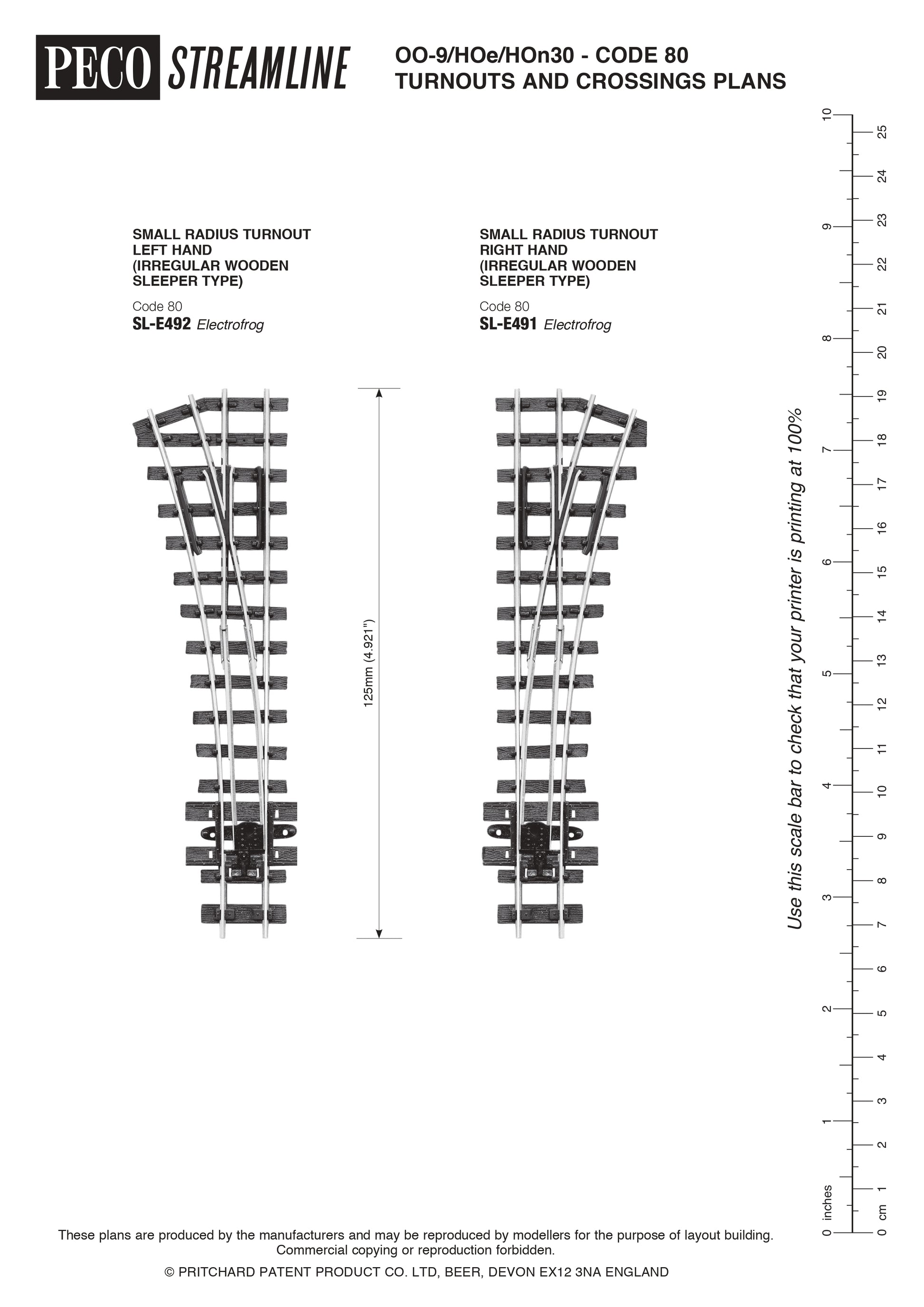

PECO SL-E491-SL-E492 plan sheet

Alternative product:  PECO SL-E491 OO9 / HOn30 / HOe small radius right-hand Electrofrog turnout

Associated products:  PECO SL-310 conducting rail joiners, PECO SL-311 insulated rail joiners, and PECO SL-14 track fixing pins.
