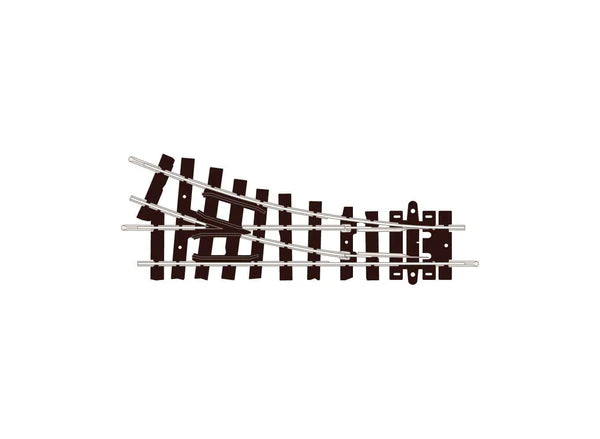

PECO ST-405 OO9 / HOn30 / HOe short radius right-hand Insulfrog turnout

Length:  87 mm

Radius:  228 mm

Gauge:  9 mm

Rail height:  code 80 (0.08" ≈ 2.0 mm)

Frog angle:  22.5°

Frog type:  Insulfrog

Turn direction:  right-hand

Corresponding ladder track centre-to-centre separation:  34.7 mm

PECO product page:  PECO ST-405

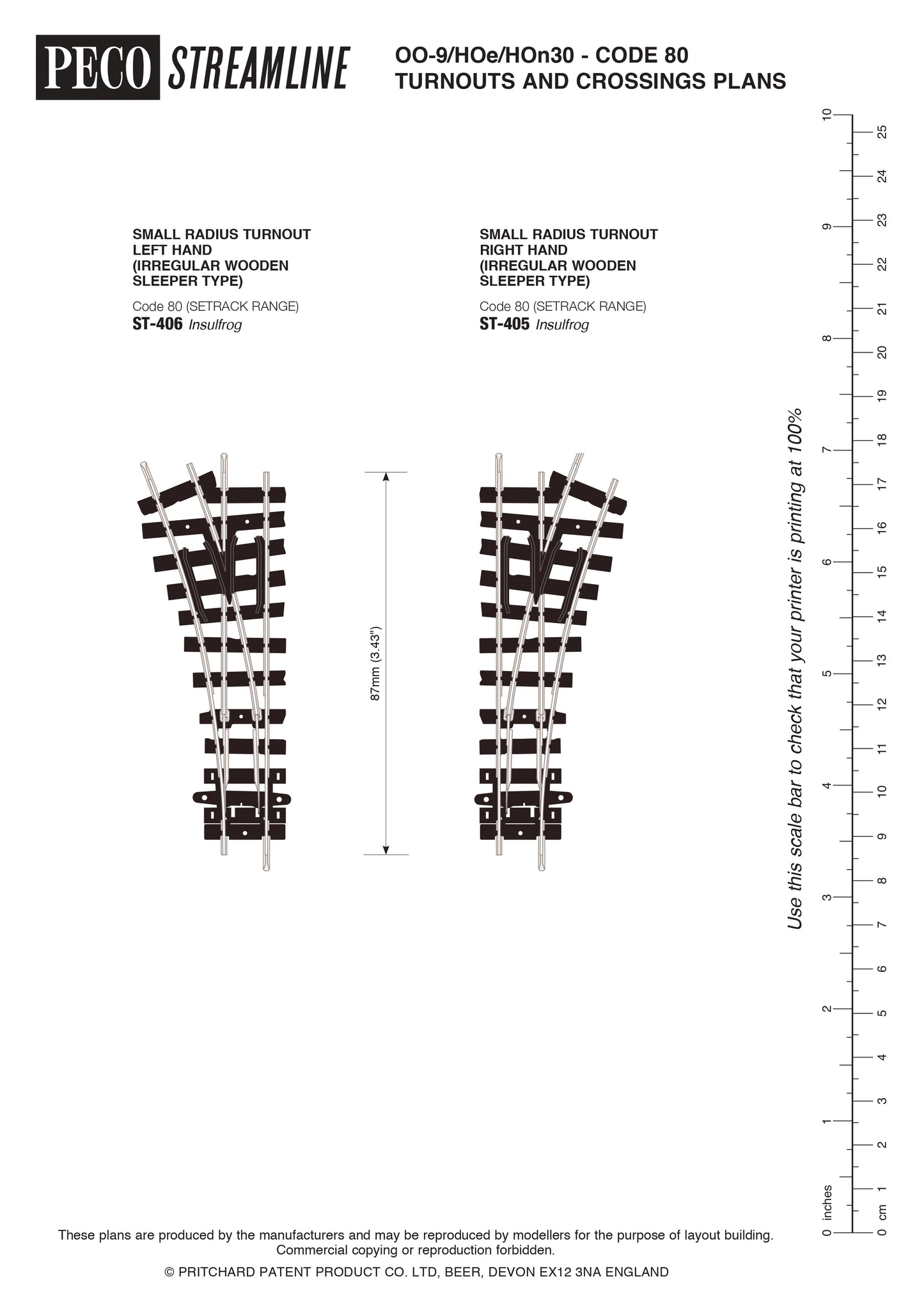

PECO ST-405 plan sheet
